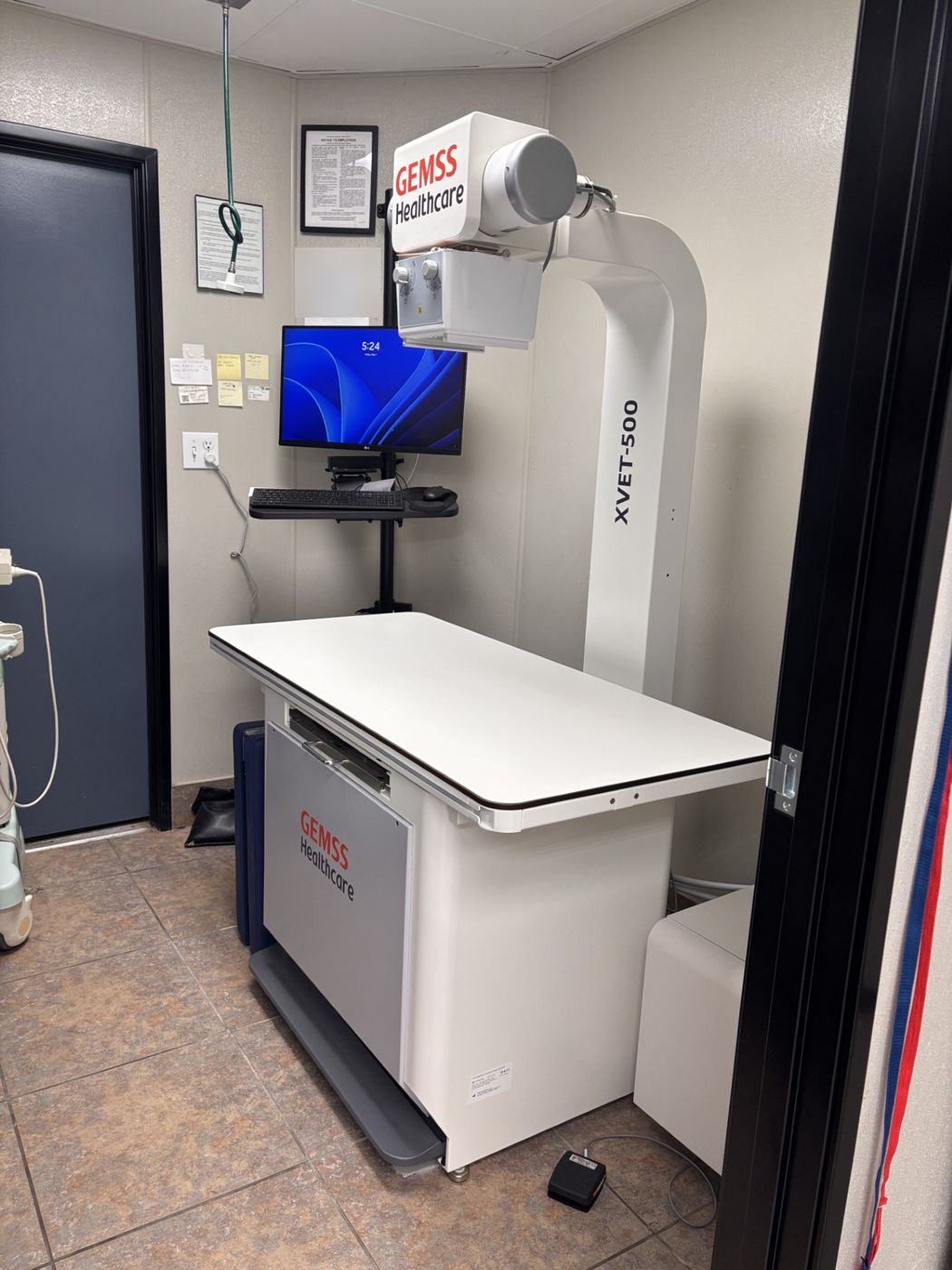

Velion LG DR System · Powered by LG
A complete veterinary X-ray machine, powered by LG.
A digital X-ray room for veterinary clinics: LG 17×17 wireless detector and LG acquisition software on a 32 kW X-ray platform, with Velion Cloud PACS, configured and supported by our own team.
Quoted after a site review. Power, shielding, and room access vary by site, so we review them with you first.
Why clinics notice the difference
Technique where the tech works
kVp and mAs are set from the acquisition workstation, with veterinary APR presets by anatomy and body size.
Clinic-tuned image protocols
Protocols are configured during installation and refined against clinical feedback, not shipped as factory defaults.
Short exposures that freeze motion
At 320 mA the system delivers 16 mAs in 0.05 seconds, which matters most on large-breed thorax studies.
Complete without the bundle
A full DR and PACS workflow without tying the clinic to a multi-year lab agreement.
Same room, one replacement

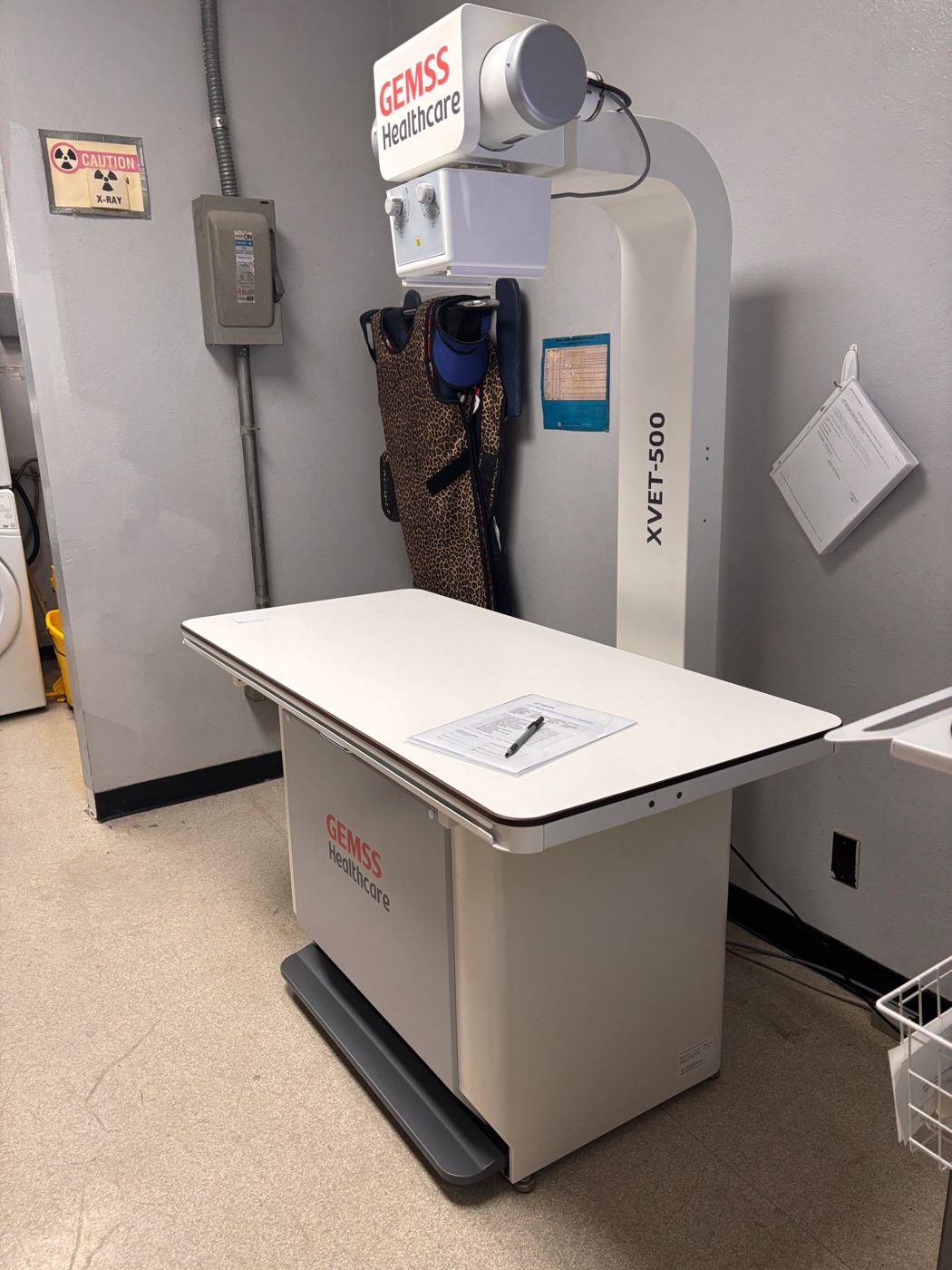

Previous system out. LG DR System in.
Our crew handles delivery, removal of the old unit, installation, detector calibration, and protocol setup. Then we train your team on site.
Built to fit a standard exam room
Specifications
Specifications from manufacturer published data; subject to change.
- Room and power review before quoting
- Delivery, installation, and calibration by our crew
- Documentation support for state X-ray registration
- 6 months of Velion Cloud PACS, then $119/month
| X-ray platform | GEMSS XVET-500 |
|---|---|
| Generator | 32 kW high-frequency |
| kV / mA | 40–125 kVp · 10–400 mA |
| Exposure | 4 ms – 10 s · 0.4–630 mAs |
| Tube | Dual focus 1.0 / 2.0 mm · 140 kHU |

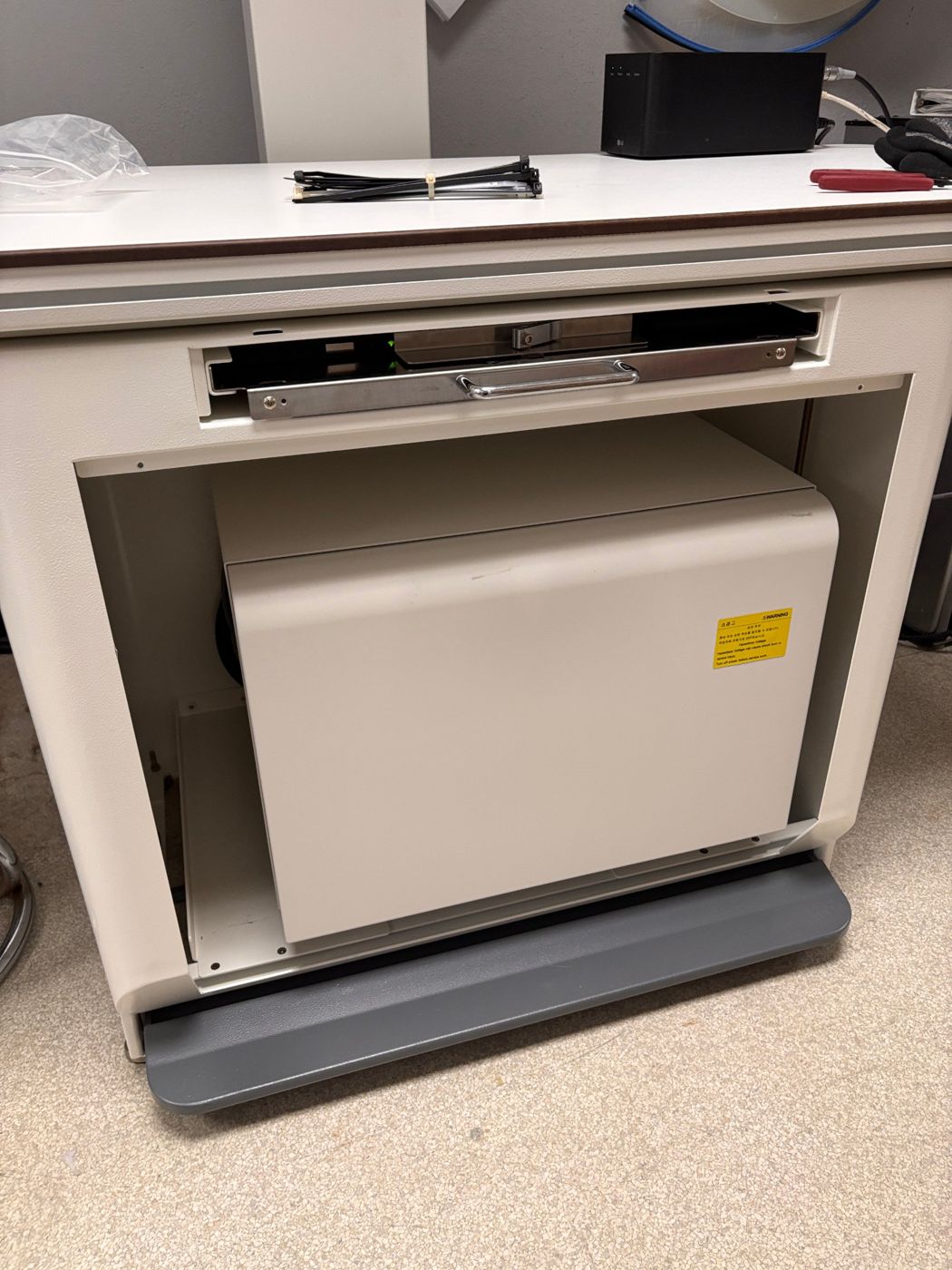

| Table | 4-way floating top, 55.1 × 25.6 in, generator in base |

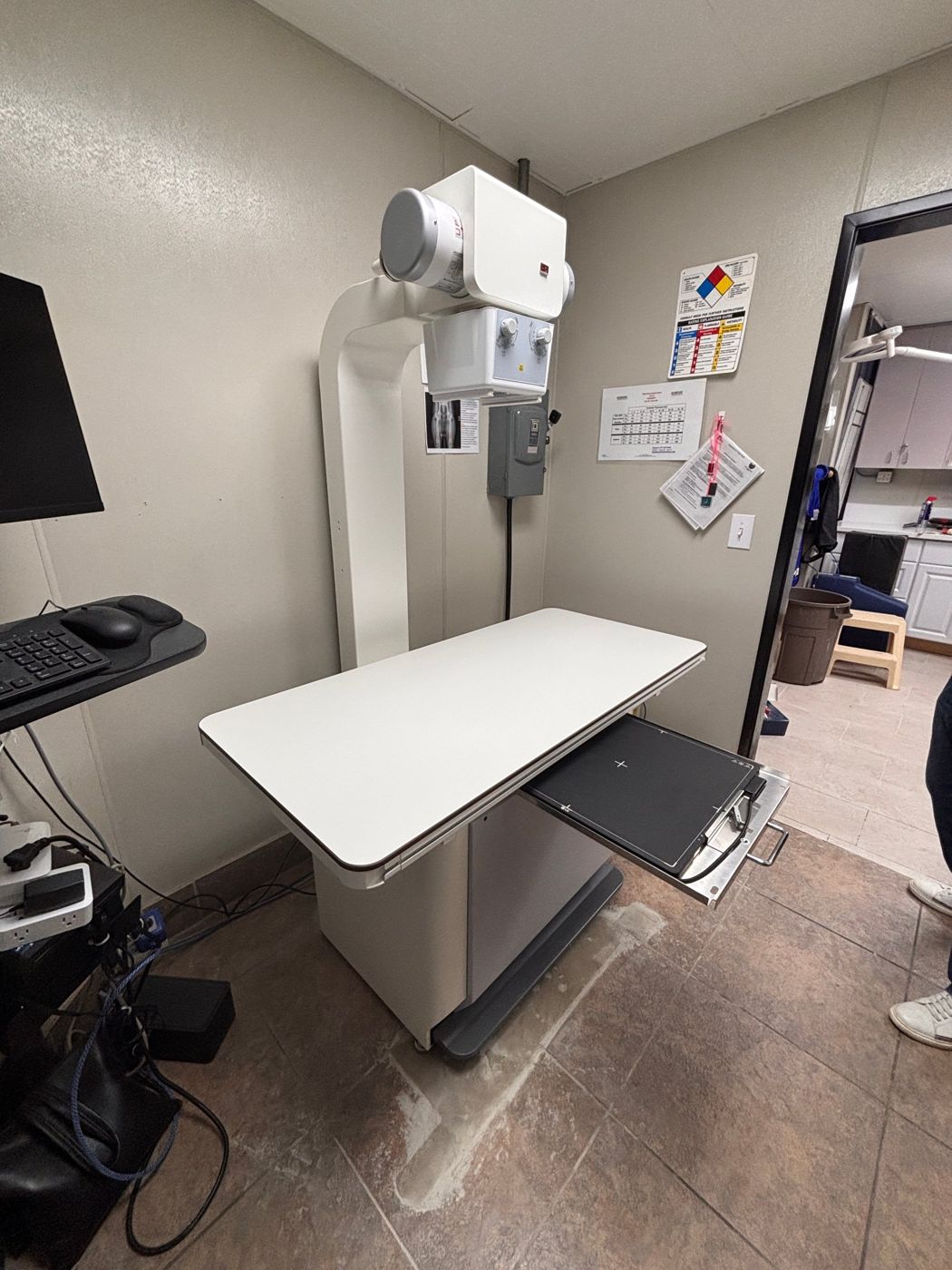

| Detector | LG 17HQ701G, 17 × 17 in, a-Si / CsI, wireless |
| Power | 220–240 V single-phase. Battery-bank option where 240 V is not practical (site-dependent) |
| Room | 90.6 × 82.7 in (2300 × 2100 mm) minimum |
Plan your X-ray room
A complete-system quote depends on your room, power, and installation scope. Send us the basics and we will set up a site review.
Send us a message
Mention your city and whether you are replacing an existing X-ray. We will ask for room photos when we reply.
