Veterinary ultrasound · Alpinion X-CUBE
Veterinary ultrasound systems for small-animal clinics.
Alpinion X-CUBE cart-based and laptop systems, plus the miniSono tablet probe, with Doppler, microvascular imaging, and USB recording. Available through Velion.
See it at Fetch dvm360 Long Beach, Dec 4–5, 2026, Table #314.
Choose a system by how you scan
Three formats, one family of imaging technology. Pick the one that fits your exam room, or the way you work.

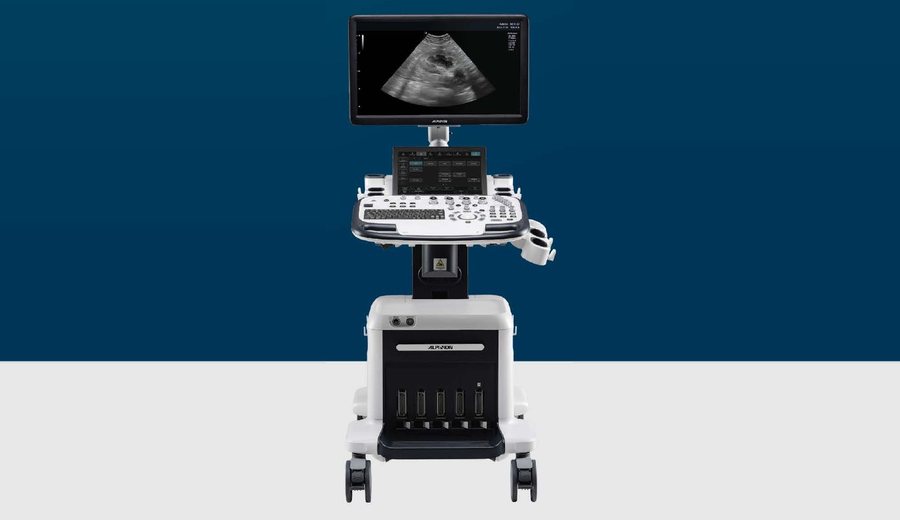

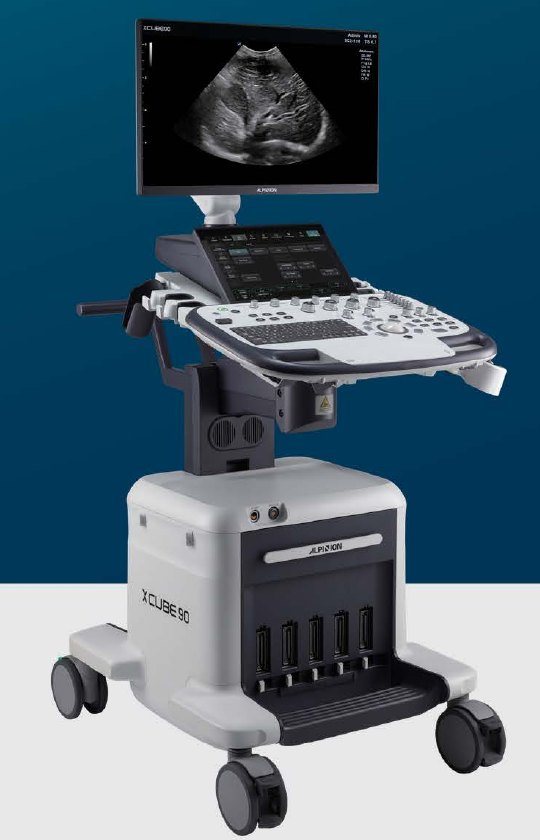

Cart-based
X-CUBE 90, 70, and 60
For a dedicated ultrasound room or a busy exam room that wants the widest probe choices. The 90 and 70 with Elite add shear wave elastography and attenuation imaging.

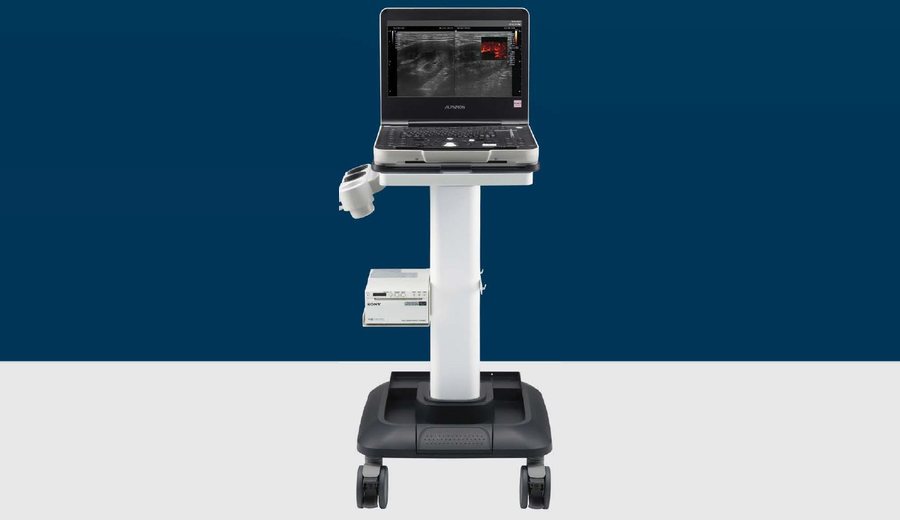

Laptop on a stand
X-CUBE i9 and i8
A smaller footprint with a laptop display on a rolling stand. Both include X+ MicroView, X+ Assistant, X+ Compare, and USB recording.

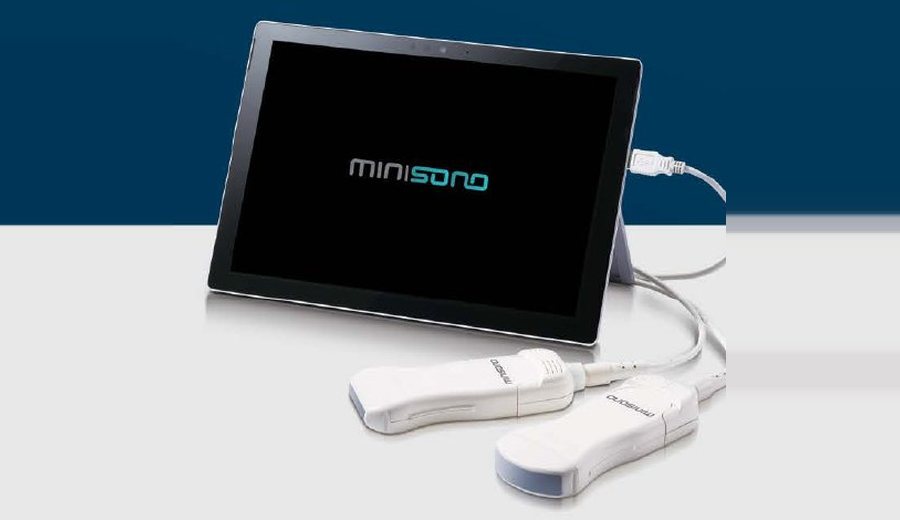

Tablet
miniSono
A tablet with USB probes, for exams away from a fixed ultrasound station. Offered with C1-6 and L3-12 probes.
Compare Alpinion veterinary ultrasound systems
Features and probes by model. Advanced X+ Architecture is available on the X-CUBE 90 and 70 with Elite.
| System | Format | Main features | Transducers |
|---|---|---|---|
| X-CUBE 90 with Elite | Cart-based | SWE, ATI, Brilliant Flow, X+ MicroView, X+ Assistant, X+ Compare, USB real-time recording | SC2-11H, SL3-19X, SL3-19H, L3-8H, L3-12X, IO7-18, L10-25H, SP3-8T, MP1-5X |
| X-CUBE 70 with Elite | Cart-based | SWE, ATI, Brilliant Flow, X+ MicroView, X+ Assistant, X+ Compare, USB real-time recording | SC2-11H, SL3-19X, SL3-19H, L3-8H, L3-12X, L3-15H, IO7-18, L10-25H, MP1-5X |
| X-CUBE 60 | Cart-based | Brilliant Flow, X+ MicroView, X+ Assistant, X+ Compare, USB real-time recording | SC2-11H, SL3-19X, L3-12X, L3-15H, L10-25H, P1-5CT |
| X-CUBE i9 | Laptop on stand | X+ MicroView, X+ Assistant, X+ Compare, USB real-time recording | SC2-11H, SL3-19H, L3-8H, IO7-18, L10-25H, MP1-5X, SP3-8T |
| X-CUBE i8 | Laptop on stand | X+ MicroView, X+ Assistant, X+ Compare, USB real-time recording | SC2-11H, L3-8H, L3-12T, P1-5CT |
| miniSono | Tablet with USB probes | X+ MicroView, X+ Assistant, X+ Compare, USB real-time recording | C1-6, L3-12 |
Specifications from the manufacturer and subject to change. Probe availability varies by system and configuration.
Image quality built into the platform
Alpinion's X+ imaging technology works at three levels, from the transducer to the processed image.
X+ FIT
Parallel beamforming that sends, receives, and processes a large amount of data, to improve contrast, uniformity, and resolution.
X+ Focus
Image processing that shows a clearer picture by bringing out true clinical information and suppressing noise and artifacts.
X+ Crystal Signature
An upgraded single-crystal transducer material with a new backing material, to cut signal loss and improve penetration and sensitivity.

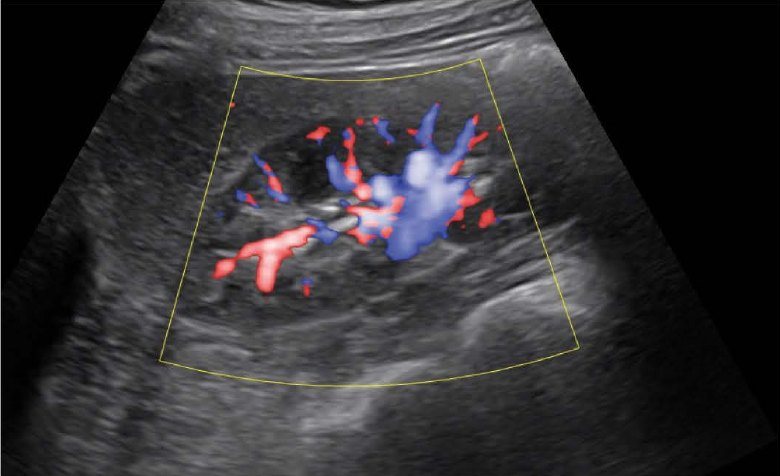

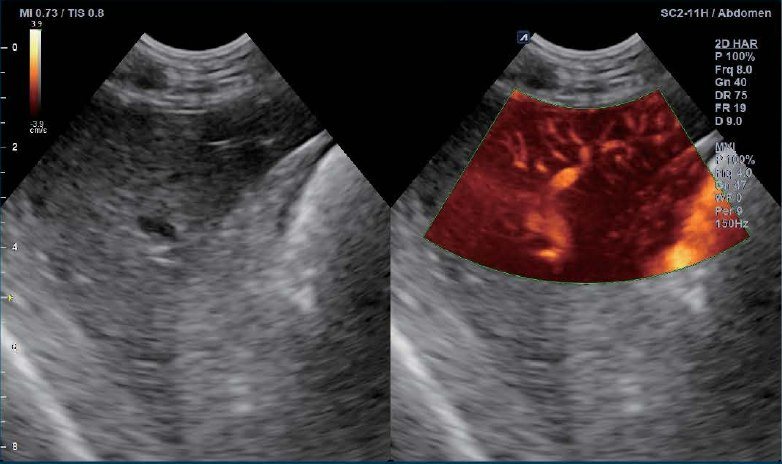

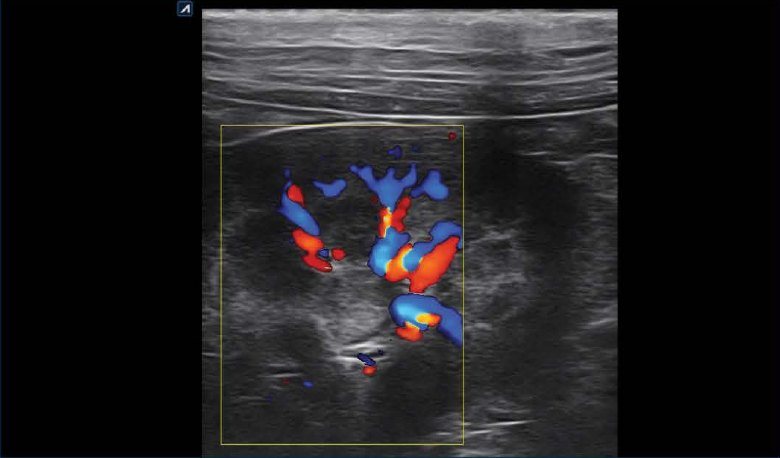

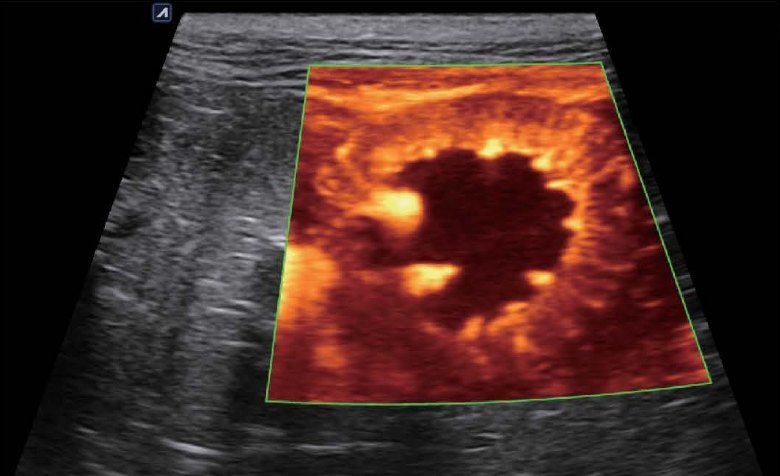

See slow blood flow in small vessels
Two vascular modes that help with small, low-velocity vessels, such as in the kidney and the liver.

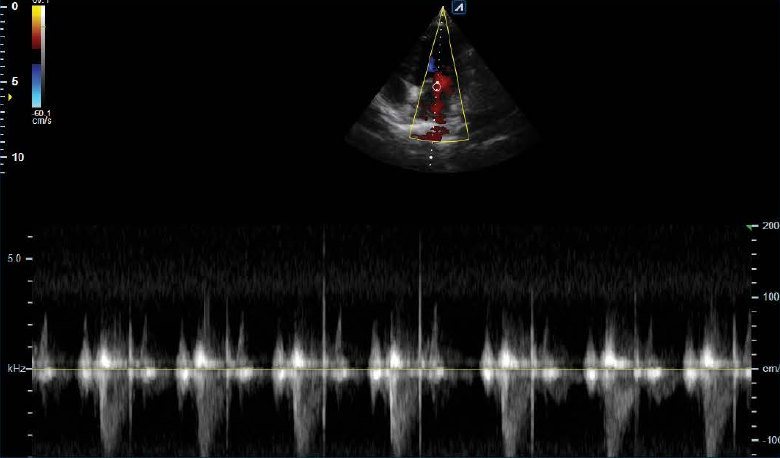

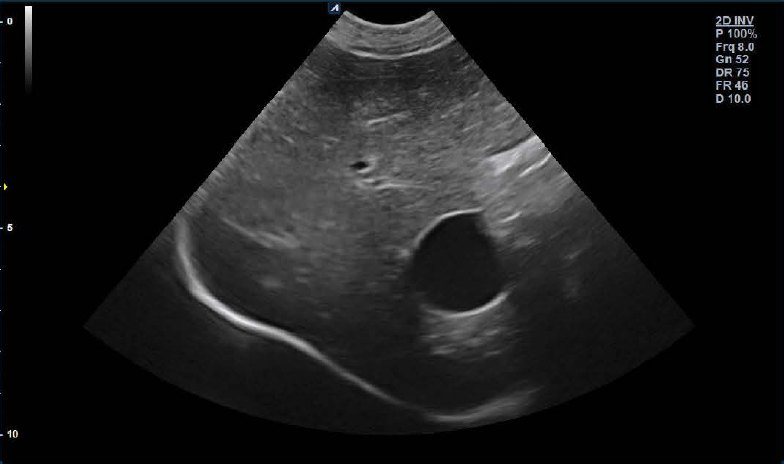

Sample clinical images
Abdominal, vascular, and cardiac studies from Alpinion systems.
Images courtesy of Alpinion Medical Systems. Standalone clinical images may have been cropped to better show pathology.
Ultrasound and X-ray, one team
Add ultrasound to the imaging you already run with us. Review ultrasound clips next to X-ray studies in Velion Cloud PACS, and go digital on the X-ray you own with a DR retrofit or a complete LG DR System.
One partner for veterinary imaging
- Ultrasound systems from Alpinion
- LG DR detectors, retrofit, and complete rooms
- Portable X-ray and Cloud PACS
Veterinary ultrasound questions
Which veterinary ultrasound system is right for my clinic?
It depends on where you scan and which exams you do most. The X-CUBE 90 and 70 with Elite are cart-based systems with the broadest feature set and probe choices, including shear wave elastography and attenuation imaging. The X-CUBE 60 is a cart-based system without those two modes. The X-CUBE i9 and i8 put a laptop display on a rolling stand, and the miniSono pairs a tablet with USB probes. Tell us your caseload and we will recommend a configuration.
Which probes are available?
Probe options differ by system, from abdominal and cardiac to high-frequency linear probes for superficial structures. The comparison table on this page lists the transducers offered with each model. We help you choose a probe set for your caseload before you buy.
Can ultrasound images be stored and shared with Velion Cloud PACS?
Velion Cloud PACS can review ultrasound clips alongside X-ray studies, with viewer links and original DICOM export. Ask us to confirm the setup for the system you are considering.
How much does a veterinary ultrasound system cost?
Pricing depends on the system, the probes you choose, and the configuration. Request a quote and we will send options for your clinic, installation included in Southern California.
Can I see an Alpinion ultrasound before I buy?
Yes. Contact us to arrange a demonstration, or see Alpinion ultrasound at Fetch dvm360 Long Beach, Dec 4–5, 2026, Table #314.
Tell us about your ultrasound needs
Which exams do you do most, and where do you scan? We will recommend a system and probe set, and send a quote.
