Authorized LG distributor

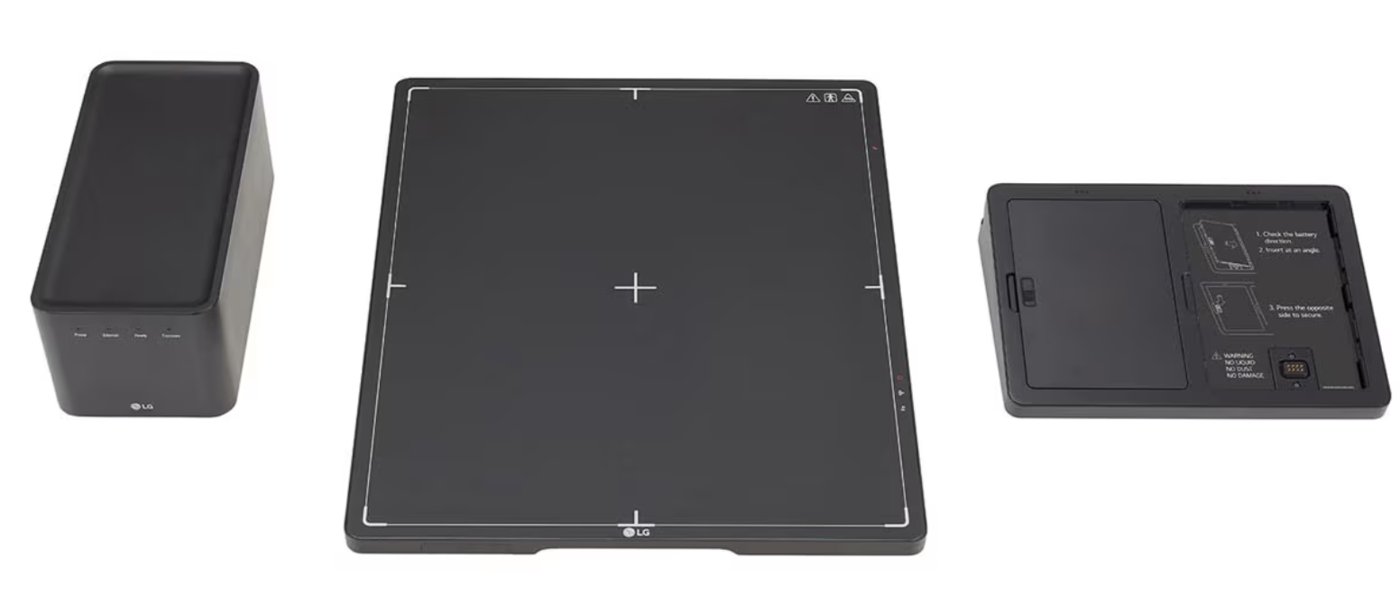

LG digital X-ray detectors, supplied and installed.
New LG 14HQ701G and 17HQ701G wireless detectors, shipped nationwide. Installation, software setup, and calibration by our own team.
Standard installation is included in Southern California; travel elsewhere is quoted upfront.
Choose a size
14 × 17 in
LG 14HQ701G-B
Also listed as 14HQ701G-BP and 14HQ701GB
| Matrix | 2,500 × 3,052 |
|---|---|
| Pixel pitch | 140 µm, CsI |
| Connection | Wired or wireless, AED |
| FDA 510(k) | K221394 |
Best for: existing 14 × 17 bucky trays and general radiography.
Specs and pricing17 × 17 in
LG 17HQ701G-B
Also listed as 17HQ701G-BP and 17HQ701GB
| Matrix | 3,072 × 3,072 |
|---|---|
| Pixel pitch | 140 µm, CsI |
| Connection | Wired or wireless, AED |
| FDA 510(k) | K221434 |
Best for: tabletop work, larger patients, the Velion LG DR System, and veterinary retrofits.
Specs and pricingFDA 510(k) cleared for general radiography of human anatomy (not for mammography or dental). Also used in veterinary imaging.
A common pairing with portable X-ray units
LG detectors are widely used with battery-powered portable X-ray units, and we supply them for that use as often as for fixed rooms. The reason is auto exposure detection (AED): the panel senses the exposure itself, so there is no sync cable and nothing to connect on the portable. It works the same way on a handheld or cart-based unit as it does on a room generator.
Any portable, any brand
No interface to the unit means no compatibility list. If the portable can expose film or a CR cassette, it can expose the LG detector.
Wireless in the field
The panel sends images to a laptop or workstation over its own wireless link (802.11ac), with a cable option where you prefer it.
One panel, two jobs
The same detector can serve a portable for house calls or equine work and a fixed room, with the software managing both.
Questions
Does the LG detector work with a portable X-ray unit?
Yes. The detector uses auto exposure detection, so it is not wired to the X-ray unit and does not depend on its brand or type. Battery-powered portables, handheld units, and fixed room generators all work the same way.
Which size should I choose, 14×17 or 17×17?
14×17 fits existing 14×17 bucky trays and is the common choice for medical practices and portables. 17×17 covers more of a large patient in one exposure and is what we install in veterinary rooms and the Velion LG DR System.
Are the panels new, and who installs them?
New panels, supplied as an authorized LG distributor. Our own team installs and calibrates on site; standard installation is included in Southern California and travel elsewhere is quoted upfront.
Can I replace a failed panel of another brand with an LG detector?
Yes. We replace other brands of panel with an LG detector and software as a retrofit, on your existing generator or portable.
Already have an X-ray system?
Replace a failed LG panel
A new panel shipped to you, with pairing and calibration support.
Detector replacementUpgrade a veterinary room
LG 17×17 detector, software, and workstation, installed for $12,900.
Veterinary retrofitUpgrade a medical practice
LG detector and acquisition software on your existing X-ray, with a two-week trial.
Medical practicesRequest LG detector pricing
Tell us the model, quantity, and whether you need installation.
